ALUMINUM CHASSIS, ALUMINUM CONE, NOMEX SPIDER WITH ATTACHED TINSEL WIRE
HIGH POWER HANDLING.
Design notes:

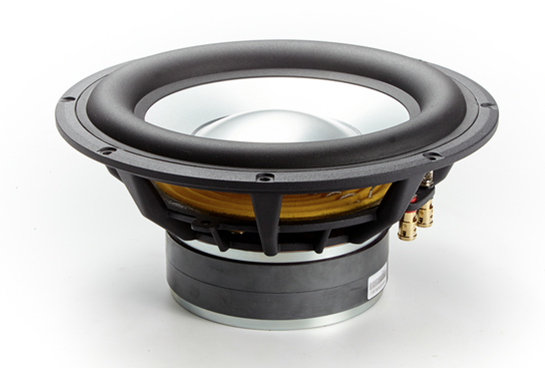

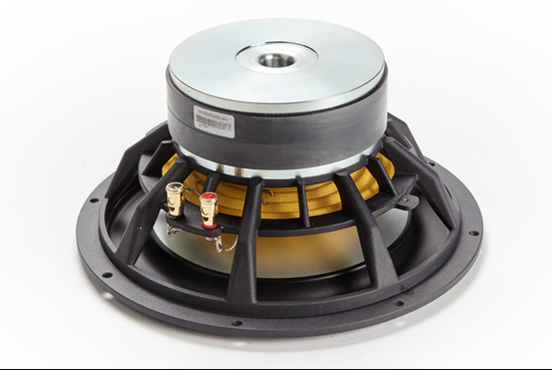

The 10FHW is a high efficiency, (84dB 1watt / 1 meter) 10-inch sub-woofer speaker with extended low frequency response and high power handling capability. The 10FHW uses a strong anodized aluminum cone assembly along with a single roll rubber surround. Spider is Nomex material with stitched-on tinsel wires. This ensures long lasting performance even in high powered applications. The chosen material combination provides remarkable strength, high efficiency and sustained output under extreme conditions. Magnetic Circuit REDCATT engineers have developed a ferrite based magnetic circuit, capable of delivering the highest level of performance, providing a consistent, high integrity magnetic flux gap, ultra low distortion characteristic and high efficiency cooling system. The magnetic structure has integrated two aluminum shorting rings. The magnetic circuit design is optimized to generate the minimum amount of flux modulation, providing exceptional stability.
