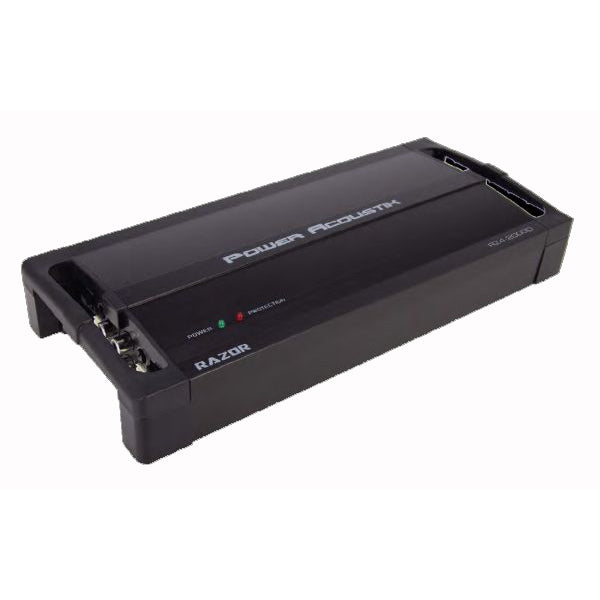

Power Acoustik RZ2 1300D Car Audio Amplifier - 1300W Max Power, 2-Channel Class AB, Bass Boost - Perfect for Car Audio Systems & Subwoofers

Features:

• 2-Channel RAZOR Series Full Range Class D Car Amplifier
• RMS Power Rating:
• 4 ohms: 160 watts x 2 chan.
• 2 ohms: 250 watts x 2 chan.
• Bridged, 4 ohms: 500 x 1 chan.
• Max power output: 1300 watts x 1 chan.
• Wired remote bass level control included
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
• Soft start turn-on
• Mono channel operation
• Speaker-level (high-level) inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• Variable high-pass filter (50-250 Hz, 24 dB/octave)
• Variable low-pass filter (50-250 Hz, 24 dB/octave)
• Dimensions: 4-3/4 Inch W x 7-1/2 Inch L x 1-1/3 Inch H

Specifications:

Power Specifications - Full Range Channels:

• RMS Power @ 4 ohms: 160 watts x 2 channels
• RMS Power @ 2 ohms: 250 watts x 2 channels
• Bridged RMS Power: 500 watts x 1 channels

Amplifier Specifications:

• Amplifier Series: Razor (Power Acoustik)
• Amplifier Class: D
• Number of Channels: 2
• Total Peak Power Output: 1300 watts
• Total RMS Power Output: 500 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: 4 ohms
• THD at Rated RMS Power: .5%
• Speaker Level Inputs: Yes
• Preamp Outputs: No
• Built-in Crossover: Low-Pass (LP), High-Pass (HP)
• High-Pass Crossover Frequency: 50 - 250 Hz
• Low-Pass Crossover Frequency: 50 - 250 Hz
• Signal-to-Noise Ratio: 70 dB
• Channel Separation: 55 dB
• Bass Boost: 0 - 12 dB
• Bass/Gain Remote: Yes
• Fan Cooled: No
• Fuse Rating: 20A x 2
