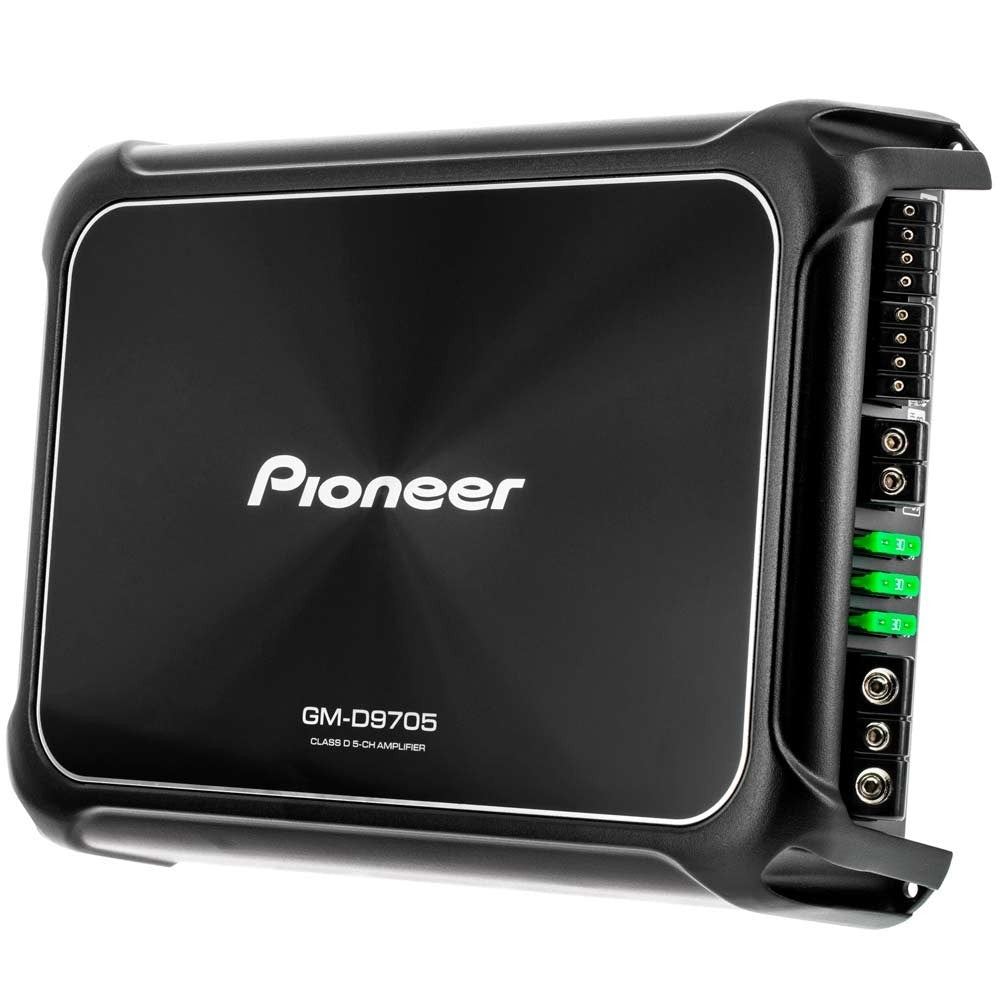

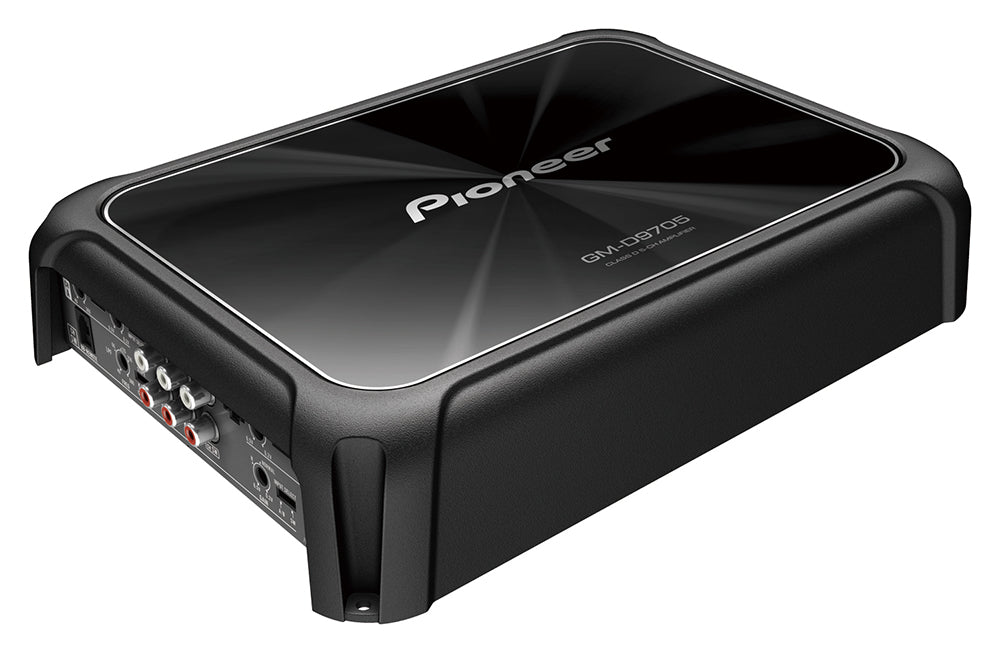

Pioneer GM D9705 2000W 5-Channel Class D Car Amplifier - GM Digital Champion Series with Wired Bass Boost Remote | High Power Audio System for Cars, Trucks & SUVs

Features:

• 5 Channel Champion Series Class D Amplifier w/ Wired Bass Boost Remote
• Max Power Rating:
• 4 ohms: 150 watts x 4 chans. + 700 watts x 1 chan.
• 2 ohms: 200 watts x 4 chans. + 1200 watts x 1 chan.
• Bridged, 4 ohms: 400 watts x 2 chans.
• RMS Power Rating:
• 4 ohms: 75 watts x 4 chans. + 350 watts x 1 chan.
• 2 ohms: 100 watts x 4 chans. + 600 watts x 1 chan.
• Bridged, 4 ohms: 200 watts x 2 chans.
• Total power output: 2000 watts Max
• CEA-2006 Compliant Amplifier
• Pulse Width Modulated MOSFET power supply
• Wired remote bass boost level control included
• LED power (green) and protect (red) indicators
• Soft start turn-on
• Speaker-level (high-level) inputs
• 5, 4 or 3-channel operation

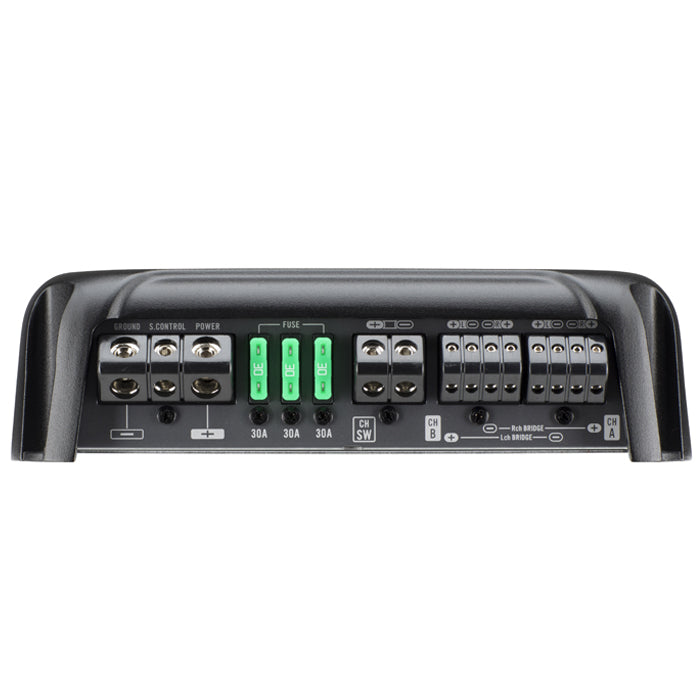

• Dedicated, large-block subwoofer terminal output
• Nickle-plated RCA, Speaker, and Power/Ground Terminals
• Selectable input modes:
• Front two channels (RCA Only) can provide signal to remaining channels
• Four-channel High-Level connection can provide signal to Subwoofer channel
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy-duty aluminum alloy heat sink for extreme heat dissipation
• Input sensitivity:
• Low level: 200mV - 6.5V
• High level: 800mV - 16V
• A/B Channel Frequency Response: 10 - 50,000 Hz (+0dB, -3dB)
• Sub-Channel Frequency Response: 10 - 500 Hz (+0dB, -3dB)
• Total Harmonic Distortion (THD): 0.05%
• Signal to Noise Ration: 94 dB
• Selectable crossover filter (Ch 1 - 4): LPF / OFF / HPF
• Variable crossover filter (Ch 1 - 4): 40 - 500 Hz, 12 dB/octave
• Variable low-pass filter (Sub): 40 - 500 Hz, 24 or 12 dB/octave
• Variable Bass Boost (Via Remote): 0 to +18 dB bass boost at 50 Hz
• Fuse Rating: 30A x 3
• 8 - 16 Gauge speaker terminal outputs

Specifications:

Power Specifications - Full Range Channels:

• RMS Power @ 4 ohms: 75 watts x 4 channels
• RMS Power @ 2 ohms: 100 watts x 4 channels
• Bridged RMS Power: 200 watts x 2 channels

Power Specifications - Subwoofer Channel:

• RMS Power @ 4 ohms: 350 watts x 1 channels
• RMS Power @ 2 ohms: 600 watts x 1 channels
• RMS Power @ 1 ohm: Not Stable

Power Specifications - Full Range Channels:

• Peak Power @ 4 ohms: 150 watts x 4 channels
• Peak Power @ 2 ohms: 200 watts x 4 channels
• Bridged Peak/Max Power: 400 watts x 2 channels

Power Specifications - Subwoofer Channel:

• Peak Power @ 4 ohm: 700 watts x 1 channel
• Peak Power @ 2 ohms: 1200 watts x 1 channel
• Peak Power @ 1 ohm: Not Stable

Amplifier Specifications:

• Amplifier Class: D
• Number of Channels: 5
• Total Peak Power Output: 2000 watts
• Total RMS Power Output: 1000 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: 4 ohms
• THD at Rated RMS Power: 0.05%
• Speaker Level Inputs: Yes
• Preamp Outputs: No
• Built-in Crossover: Low-Pass (LP), High-Pass (HP), Full (AP)
• High-Pass Crossover Frequency: 40 - 500 Hz
• Low-Pass Crossover Frequency: 40 - 500 Hz
• Signal-to-Noise Ratio: 94 dB
• Bass Boost: 0 - 18 dB
• Bass/Gain Remote: Yes
• Fuse Rating: 30A x 3
• Strappable: No
• CEA-2006 Compliant: Yes
