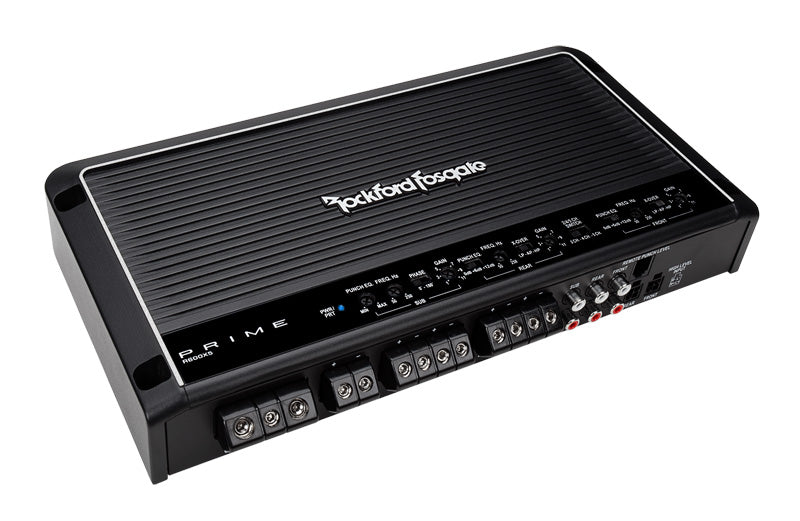

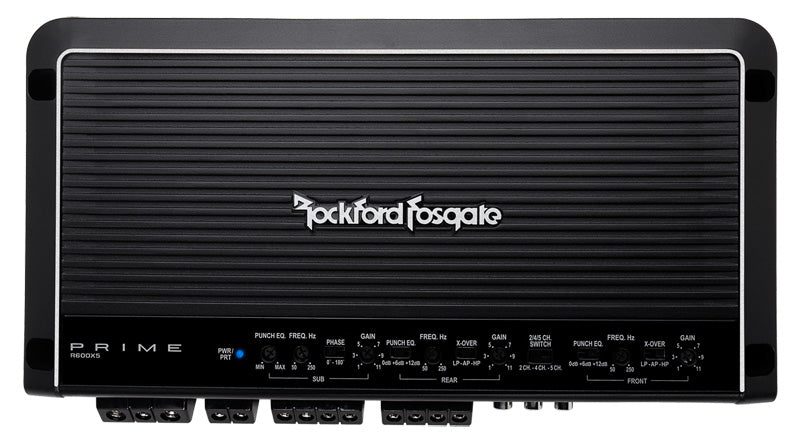

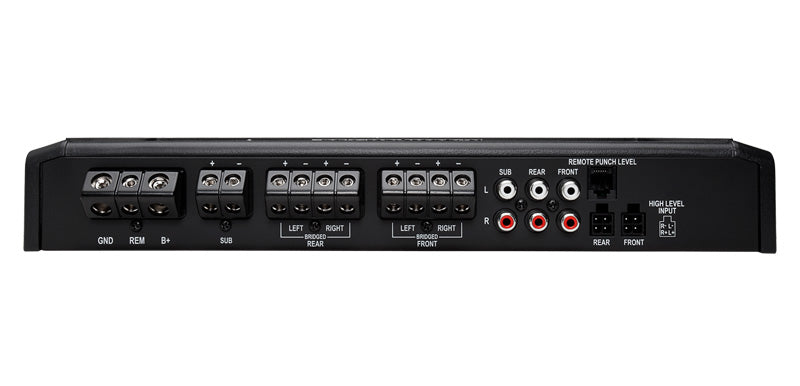

Rockford Fosgate R600X5 5-Channel Marine Amplifier - 600W High Power Car Audio Amp for Boats, Cars & Trucks | Perfect for Marine & Automotive Sound Systems

The Prime R600X5 amplifier produces up to 75 Watts into each of its 4-channels plus 300 Watts into a dedicated 5th (subwoofer) channel. This 5-channel design makes it the perfect amplifier when you want one amplifier to run it all! The Prime series offers quality and power from Rockford Fosgate at a great price. Car Audio Fanatics rock out.

Features:

• Prime Series 5-Channel Class AB Car Amplifier with Class D Subwoofer Channel
• Channel 1-4 RMS Power Rating:
  • 4 ohms: 50 watts x 4 chan.
  • 2 ohms: 75 watts x 4 chan.
• Subwoofer Channel RMS Power Rating:
  • 4 ohms: 200 watts x 1 chan.
  • 2 ohms: 300 watts x 1 chan.
• MOSFET power supply
• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Full-Range Channels Selectable Bass Boost (0/6/12 dB @ 45 Hz)
• Sub Channel Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
• Soft Start Turn-on
• Mono channel operation
• 50 Amp In-line fuse is highly recommended
• Heavy duty cast aluminum alloy heatsink for extreme heat dissipation
• Variable high-pass filter (50-250 Hz, Butterworth 12 dB/octave)
• Variable low-pass filter (50-250 Hz, Butterworth 12 dB/octave)
• CEA-2006 compliant amplifier
• Dimensions: 13-3/16 Inch L x 6-3/4 Inch W x 2 Inch H
• 4-gauge power and ground wiring is required for installation

Specifications:

Power Specifications: Full Range

• RMS Power @ 4 ohms: 50 watts x 4 channels
• RMS Power @ 2 ohms: 75 watts x 4 channels

Power Specifications: Subwoofer

• RMS Power @ 4 ohms: 200 watts x 1 channels
• RMS Power @ 2 ohms: 300 watts x 1 channels

Amplifier Specifications:

• Amplifier Class: AB / D
• Number of Channels: 5
• Total RMS Power Output: 600 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: Not Bridgeable
• THD at Rated RMS Power: 1.0%
• Speaker Level Inputs: Yes
• Preamp Outputs: 1 pair
• Built-in Crossover: LP/HP
• High-Pass Crossover Frequency: 50 - 250 Hz
• Low-Pass Crossover Frequency: 50 - 250 Hz
• Signal-to-Noise Ratio: 100 dB
• Bass Boost: 0 - 12 dB
• Bass/Gain Remote: Optional
• Fan Cooled: No
• CEA-2006 Compliant: Yes
• Strappable: No
