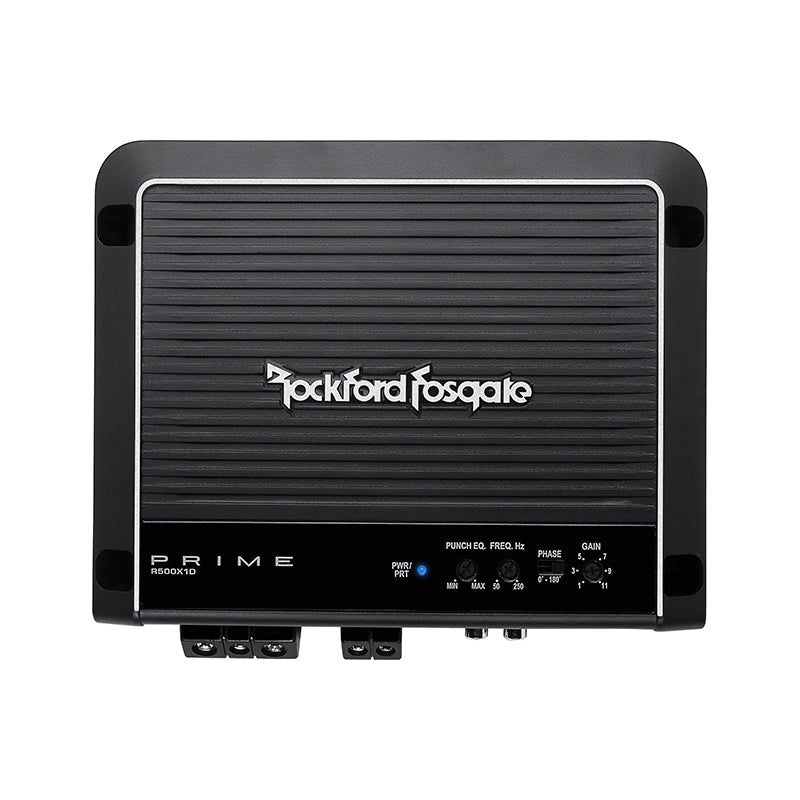

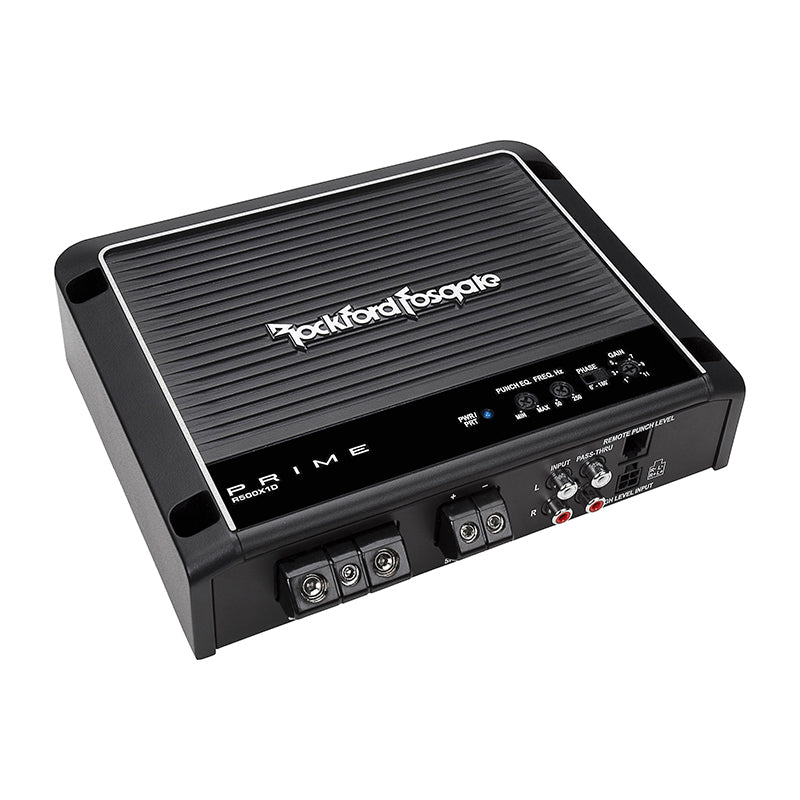

Rockford Fosgate R500X1D 500W Monoblock Class D Car Amplifier - High Power Bass Boost for Car Audio System, Home Theater, and Marine Stereo

Features:

• Prime Series Class D Monoblock Car Amplifier
• RMS Power Rating:
• 4 ohms: 300 watts x 1 chan.
• 2 ohms: 500 watts x 1 chan.
• CEA-2006 compliant amplifier
• Efficient Class-D circuit topology
• 12dB/octave Butterworth crossover
• RCA pass-thru outputs
• On-board Punch EQ with +18dB boost @ 45Hz.
• High level inputs
• Remote PLC (Punch Level Control)
• 0°/180° Phase Switch
• Real time output and power supply thermal sensing
• Cast aluminum heatsink
• 4 Gauge power/ground connectors
• MOSFET power supply
• Over current protection
• Short circuit protection
• Muted turn on
• Frequency Response: 20 - 250 Hz +/- 1 dB
• Efficiency: 89% @ 4-ohm
• Total Harmonic Distortion: <1.0%
• Signal to Noise Ratio: >100 dB
• Damping Factor: >200 dB
• Input Sensitivity: 150 mV - 4V
• Recommended Fuse: 50A x 1 (not included)
• 8-gauge speaker wire terminals

Specifications:

Power Specifications - Subwoofer Channel:

• RMS Power @ 4 ohms: 300 watts x 1 channels
• RMS Power @ 2 ohms: 500 watts x 1 channels

Amplifier Specifications:

• Amplifier Series: Prime (Rockford Fosgate)
• Amplifier Class: D
• Number of Channels: 1 - Mono
• Total Peak Power Output: 1000 watts
• Total RMS Power Output: 500 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: Not Bridgeable
• THD at Rated RMS Power: <1.0%
• Speaker Level Inputs: Yes
• Preamp Outputs: 1 pair
• Built-in Crossover: Low-Pass (LP)
• Low-Pass Crossover Frequency: 50 - 250 Hz
• Signal-to-Noise Ratio: >100 dB
• Bass Boost: 0 - 18 dB
• Bass/Gain Remote: Yes
• Fuse Rating: 50A X 1 In-Line Fuse Recommended
• Strappable: No
• CEA-2006 Compliant: Yes
