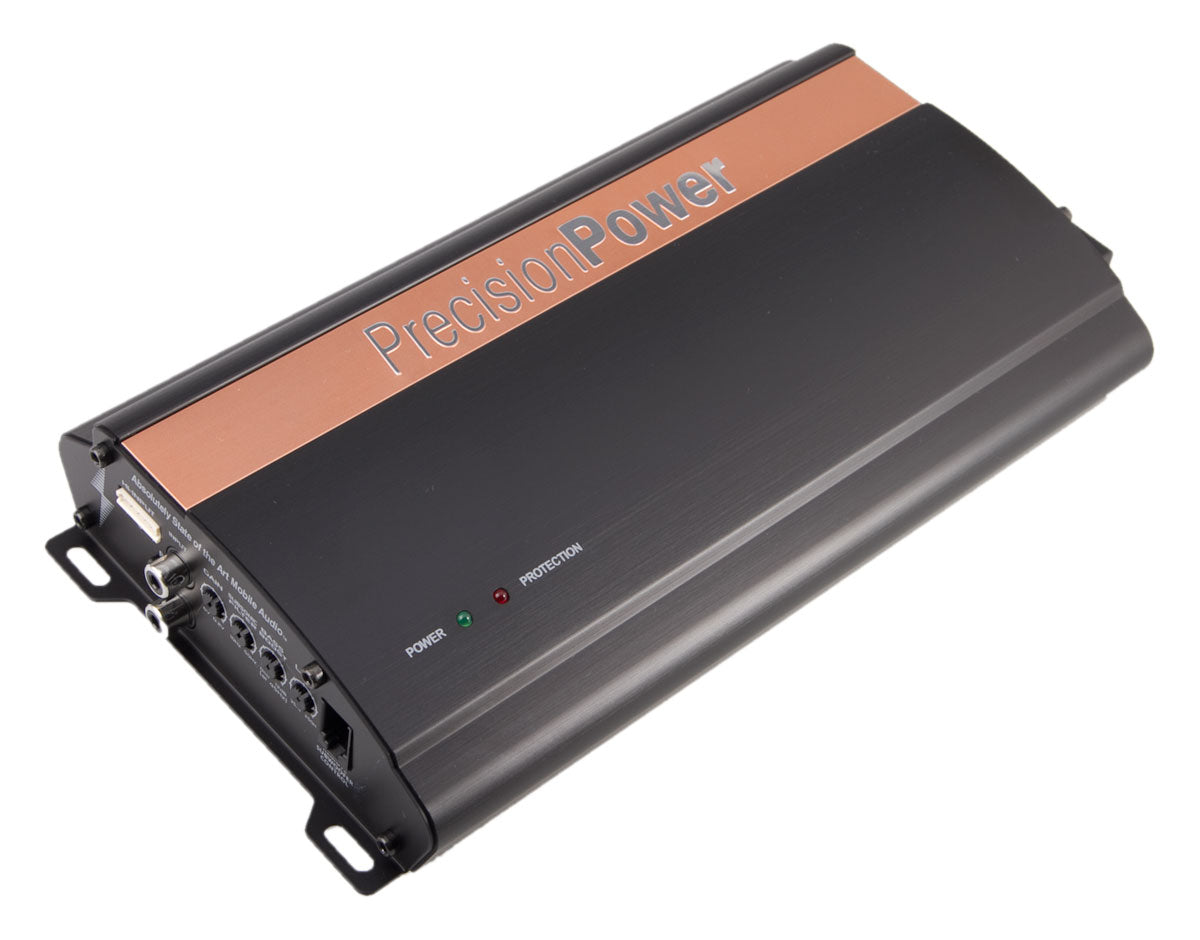

Precision Power i650.1 iON Series Monoblock Class D Car Amplifier - 650W RMS Power for Deep Bass, High Performance Car Audio System - Perfect for Car Enthusiasts & Sound Competitions

Features:

• iON Series Monoblock Class D Car Amplifier
• RMS Power Rating:
  • 4 ohms: 400 watts x 1 chan.
  • 2 ohms: 650 watts x 1 chan.
• Pulse Width Modulated MOSFET power supply
• Low-Heat producing circuit
• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Balanced signal input

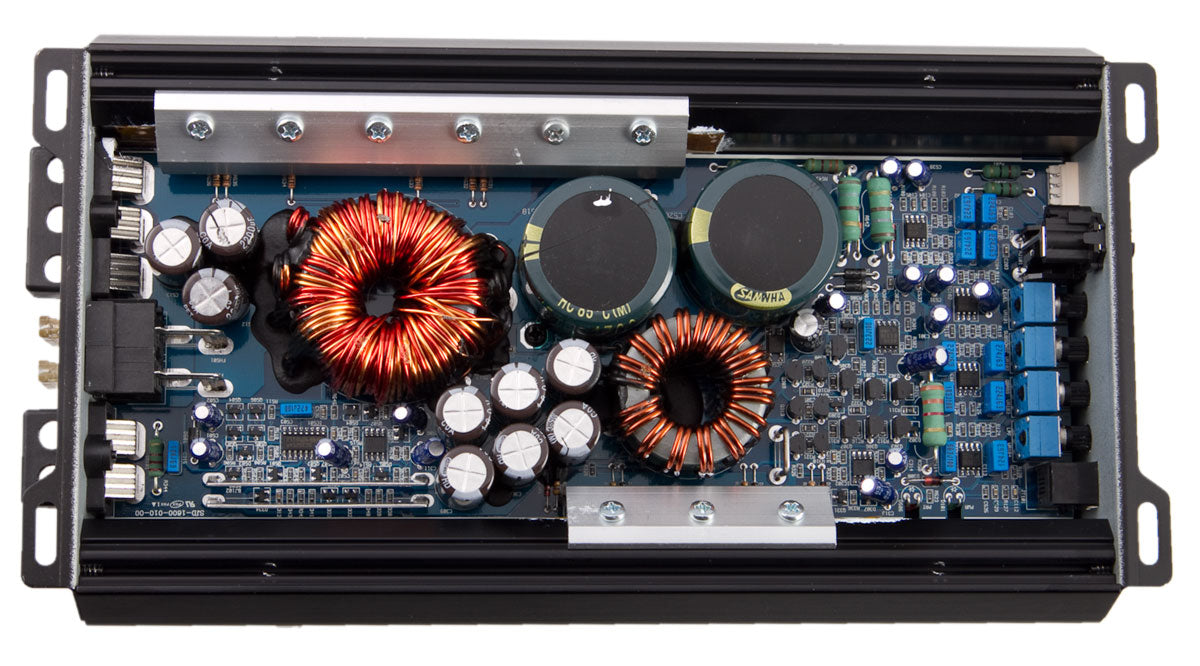

• Double sided FR-4 PC board
• Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
• SMT (Surface Mount Technology) for easy installation
• Soft start turn-on
• Mono channel operation
• Speaker-level (high-level) inputs with signal sensing for automatic turn-on
• 4-way protection circuitry (thermal, overload, and speaker short protection)

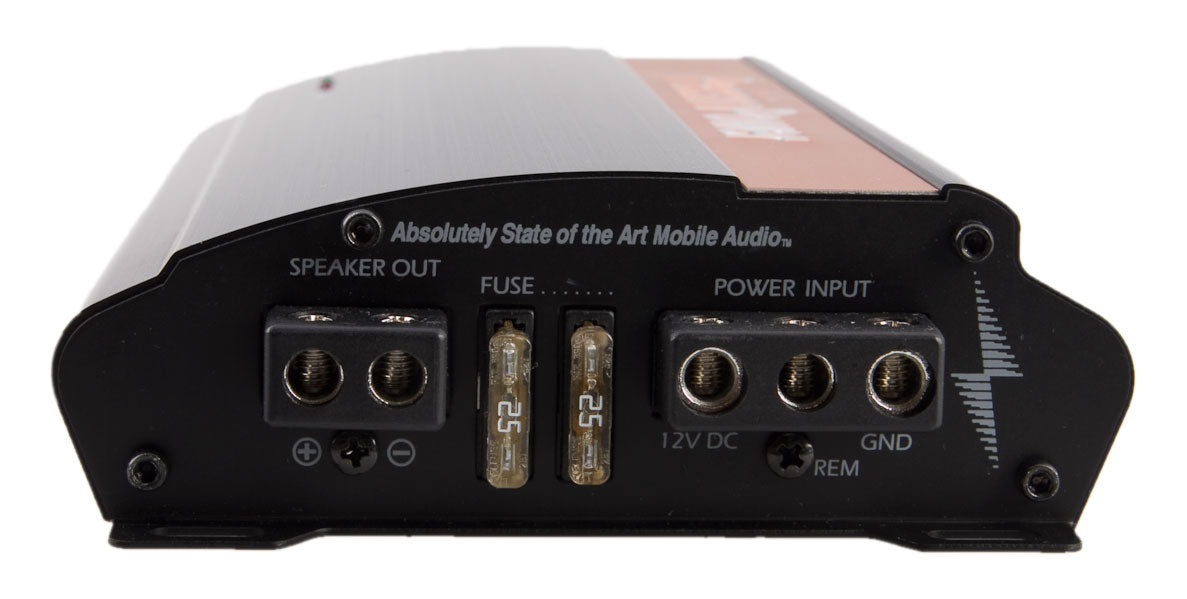

• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heat-sink
• Input sensitivity level: 200mV-6V

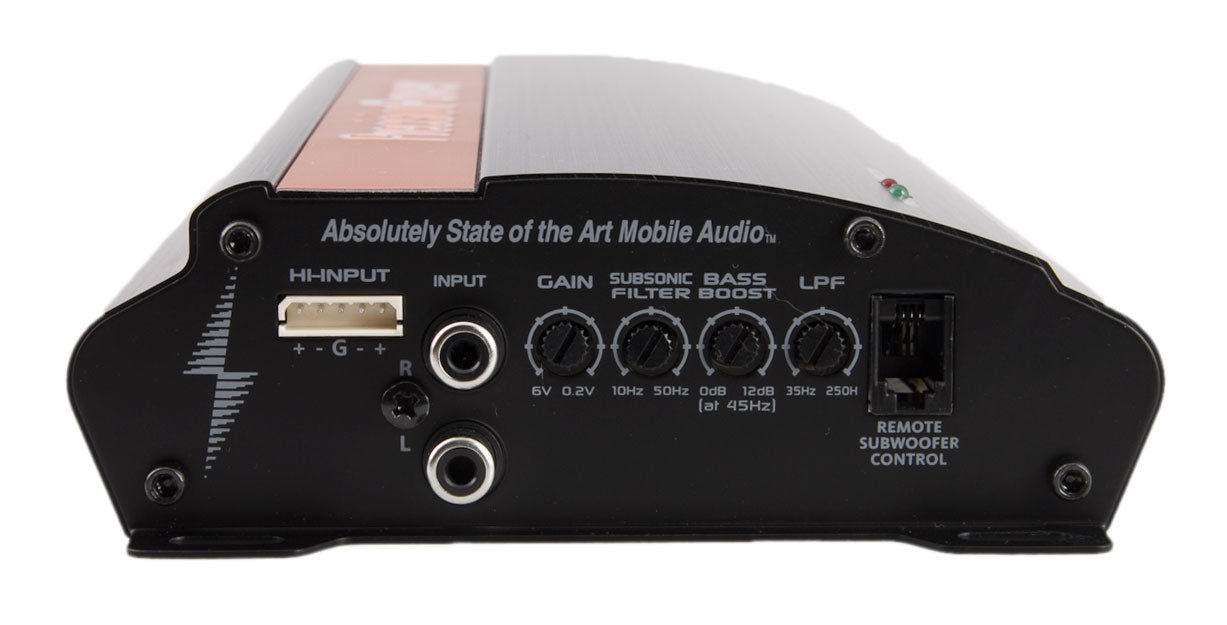

• Variable low-pass filter (35-250 Hz, 12 dB/octave)
• Variable subsonic filter (10-50 Hz, 12 dB/octave)
• 4 gauge power and ground wiring is required for installation.
• Dimensions: 5-5/16 Inch W x 9 Inch L x 1-11/16 Inch H

Specifications:

Power Specifications: Subwoofer

• RMS Power @ 4 ohms: 400 watts x 1 channels
• RMS Power @ 2 ohms: 650 watts x 1 channels

Amplifier Specifications:

• Amplifier Class: D
• Number of Channels: 1 - Mono
• Total Peak Power Output: 650 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: 4 ohms
• THD at Rated RMS Power: 0.5%
• Speaker Level Inputs: Yes
• Preamp Outputs: No
• Built-in Crossover: Low-Pass
• Low-Pass Crossover Frequency: 35 - 250 Hz
• Subsonic Filter: 10 - 50 Hz
• Signal-to-Noise Ratio: 70 dB
• Bass Boost: 0 - 12 dB
• Bass/Gain Remote: Yes
• Fan Cooled: No
• Fuse Rating: 25A x 2
• CEA-2006 Compliant: No
• Strappable: No
