Precision Power i520.4 iON Series Class D Full Range Car Amplifier - 800W 4-Channel Car Audio Amp for Cars, Trucks & SUVs | Perfect for Upgrading Factory Sound Systems & Enhancing Bass Performance

Features:

• iON Series 4-Channel Class D Car Amplifier
• RMS Power Rating:
  • 4 ohms: 100 watts x 4 chan.
  • 2 ohms: 130 watts x 4 chan.
  • Bridged, 4 ohms: 260 watts x 2 chan.
• Pulse Width Modulated MOSFET power supply
• Low-Heat producing circuit
• LED power (green) and protect (red) indicators
• Balanced signal input

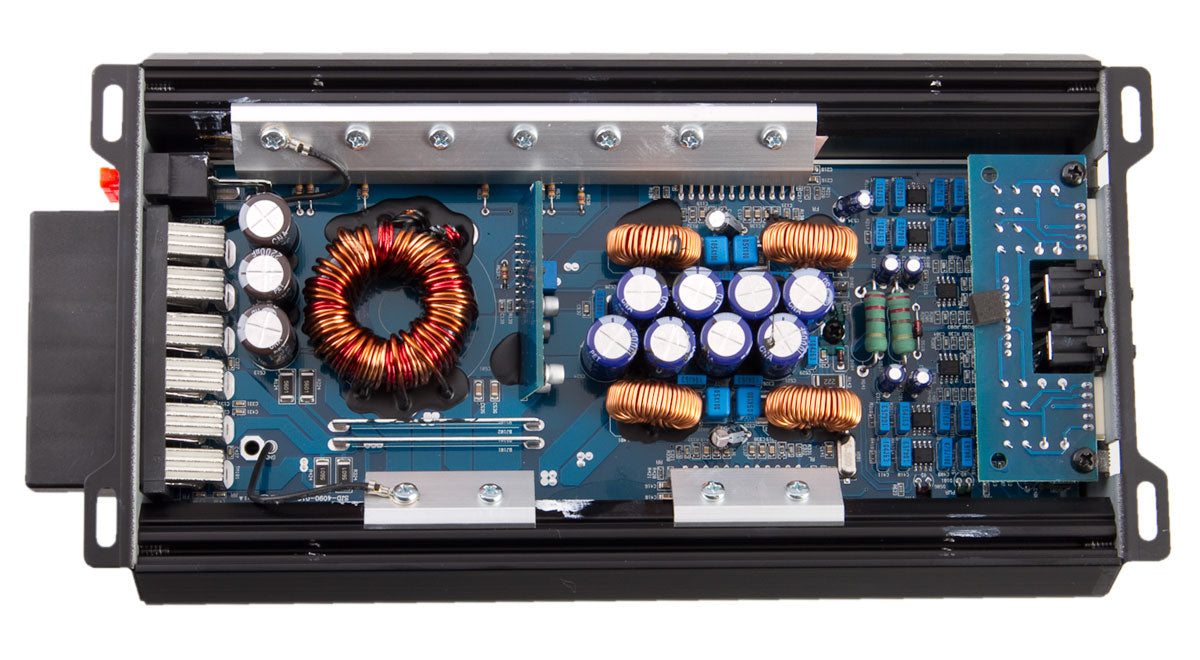

• Double sided FR-4 PC board
• Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
• SMT (Surface Mount Technology) for easy installation
• Soft start turn-on
• 2 or Mono channel operation
• Speaker-level (high-level) inputs with signal sensing for automatic turn-on
• 3-way protection circuitry (thermal, overload, and speaker short protection)

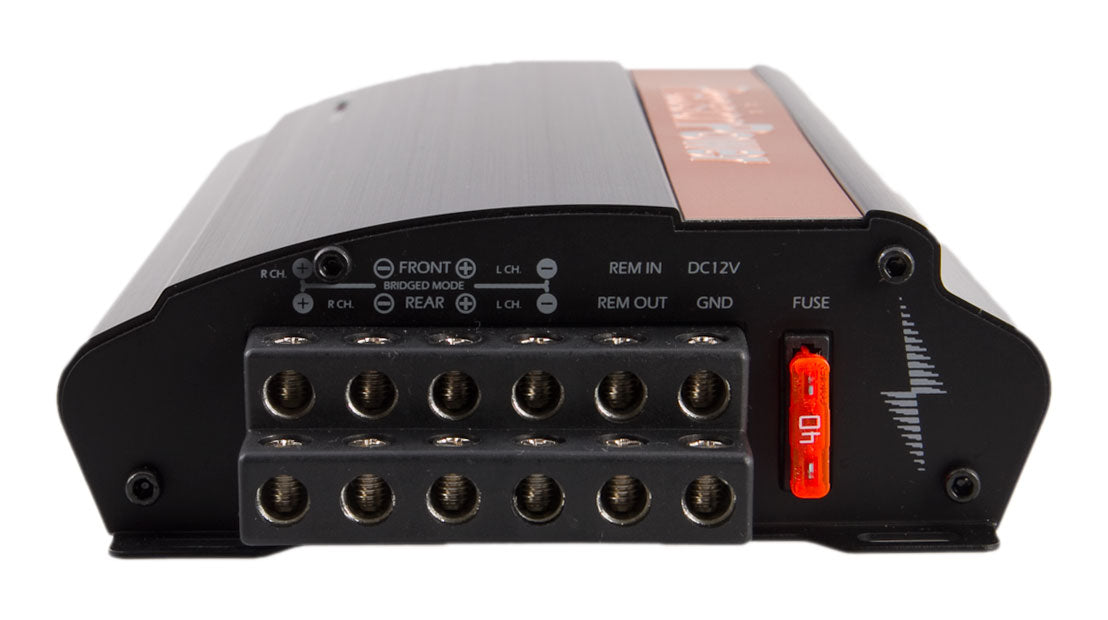

• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heat-sink
• Input sensitivity level: 200mV-6V
• Fixed high-pass filter (80 Hz)
• Fixed low-pass filter (80 Hz)
• 4 gauge power and ground wiring is required for installation.
• Dimensions: 5-5/16 Inch W x 9 Inch L x 1-11/16 Inch H

Specifications:

Power Specifications: Subwoofer

• RMS Power @ 4 ohms: 100 watts x 4 channels
• RMS Power @ 2 ohms: 130 watts x 4 channels
• Bridged RMS Power: 260 watts x 2 channels

Amplifier Specifications:

• Amplifier Class: D
• Number of Channels: 4
• Total RMS Power Output: 520 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: 4 ohms
• THD at Rated RMS Power: 0.5%
• Speaker Level Inputs: Yes
• Preamp Outputs: No
• Built-in Crossover: LP / HP
• High-Pass Crossover Frequency: Fixed 80 Hz
• Low-Pass Crossover Frequency: Fixed 80 Hz
• Signal-to-Noise Ratio: 70 dB
• Channel Separation: 55 dB
• Bass Boost: 0 - 12 dB
• Bass/Gain Remote: No
• Fan Cooled: No
• Fuse Rating: 40A x 2
• CEA-2006 Compliant: No
• Strappable: No
