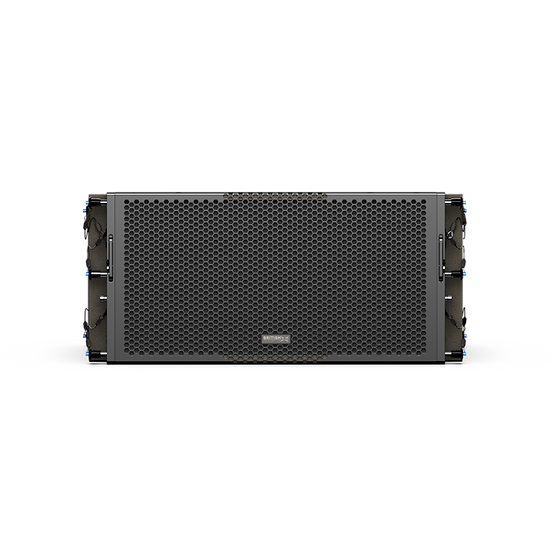

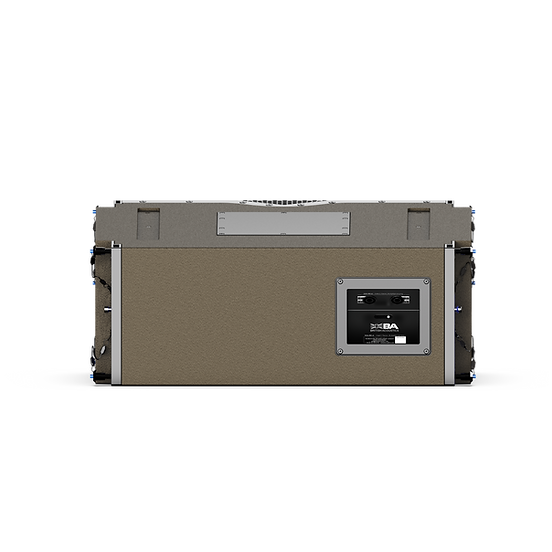

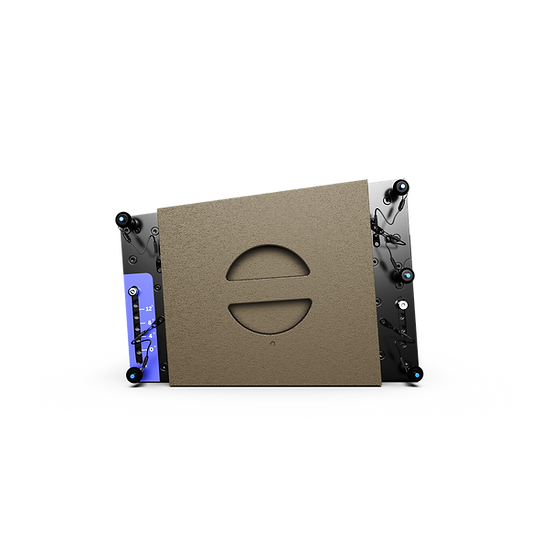

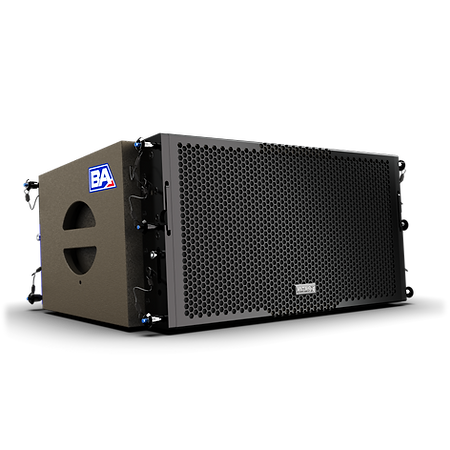

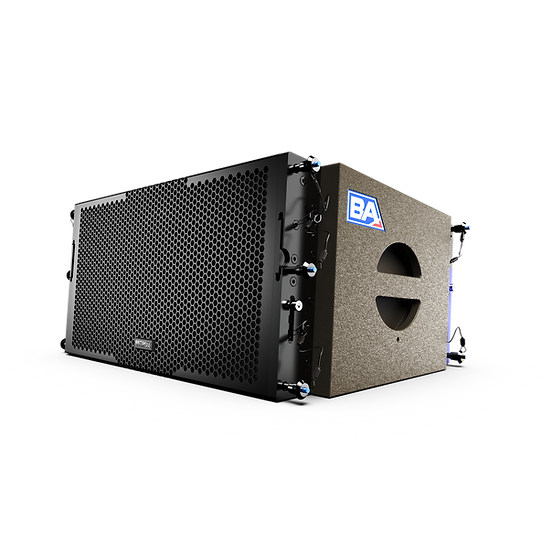

Delta 930 LA

Twin 10", High Power Compact Line Array Module

The Delta 930 LA incorporates British Acoustics’ most advanced technologies in acoustics, aesthetics & engineering. A pressure mounted HF transducer with a uniFlowTM Waveguide. The Lock-n-StockTM mechanism allows 2 units of the Delta 930LA to be locked over the Delta 918 FS or the Delta 10 4FS for easy storage and quick deployment. The array is designed with folded reflex 10” transducers to achieve an ultra-compact size.

TECHNICAL SPECIFICATIONS

ACOUSTICAL SPECIFICATIONS

• Freq. Response (-3 dB) : 50 Hz - 20 kHz
• Freq. Range (-10 dB) : 46 Hz - 20 kHz
• Rated Power : 1300W AES, 5200W Peak
• H Dispersion : 100° (- 6 dB)
• V Dispersion : 10°, array dependent
• Nominal Impedance : LF/FR - 8 Ω , HF - 8 Ω
• Crossover : 1.2 kHz Passive or Bi-amplified
• Max Output : Cont. - 132dB, Peak - 137dB
• 2 x Speak-on terminals, Input & Thru
• Passive / Bi-amp selection switch

SYSTEM SPECIFICATIONS

• Recommended Subwoofers : See Systems Chart for compatible subwoofers
• Recommended System Control : Delta 48 , Delta 98 FIR , PW 6
• Recommended Amplifiers : See Amplifier load calculation chart

LF TRANSDUCER

• 1013F - 10” Low Frequency Driver
• Two Drivers Connected in Parallel
• 600W AES, 2400W Peak
• 3” Copper Voice Coil - Ferrite Magnet
• Enhanced Airflow Path for minimal power compression
• Aluminium Demodulation Ring for Reduced Distortion

HF TRANSDUCER

• DH9375 - 1.7” Exit HF Compression Driver
• 100W, 400W Peak
• 3” Voice Coil - Ferrite Magnet
• Precise waveguide maintaining horizontal dispersion upto 18 kHz

HOUSING

• Marine Birchply Enclosure
• Granular Scratch Free Polyurea Paint
• Perforated Black, Pressed Steel Grills
• Integrated Handles on Either Side
• 4-Point Easy-Fly™ Rigging Mechanism
• 0-10° Splay Angles
• Tethered Quick-lock Pins Max. of 16 units in one hang with the Acc 930 AF
• Can be flown or stacked over the Delta 918 FS without the need of an array frame

AESTHETIC SPECIFICATIONS

• British Acoustics Signature Umber Brown
Tone
• Non Reflective, Matte Black Grills
• Available in a RAL code of your choice (24
nos, minimum)

OPERATING PARAMETERS

• Operating positions : Flown or Ground stacked with the correct Array Frame or Accessory
• Maximum permitted ambient temperature (Ta max) 55° C (124° F)
• Minimum permitted ambient temperature (Ta min): -9° C (15.8° F)

IP SPECIFICATIONS

• IP 43 - Standard protection against dust &
splashes

OPTIONAL ACCESSORIES

• See system chart for the System Accessories

SIZE

• Product : 384 x 677x 480 mm (H x W x D)
• Product : 15.1 x 26.6x 19 inch (H x W x D)
• Packed individually

WEIGHT

• Net : 47 Kgs
• Net : 103.6 Lbs

SHIPPING INFORMATION

• Carton Size
459 x 875 x 555 mm (H x W x D)
18.07 x 34.4 x 21.8 inch (H x W x D)
• Gross Weight : 49.35 Kgs / 108.7 Lbs
• Packed : Individually
