Delta K40P

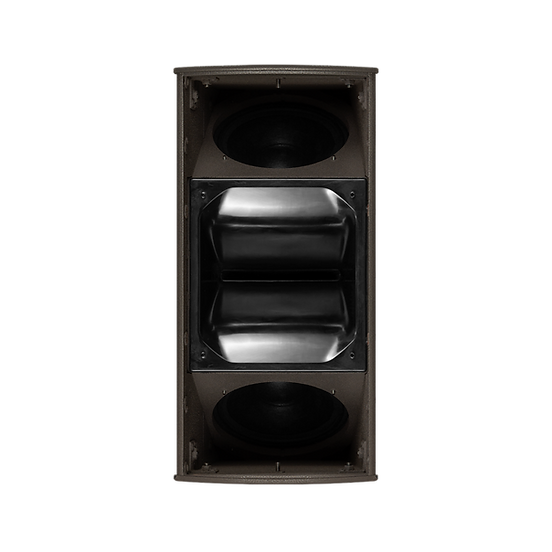

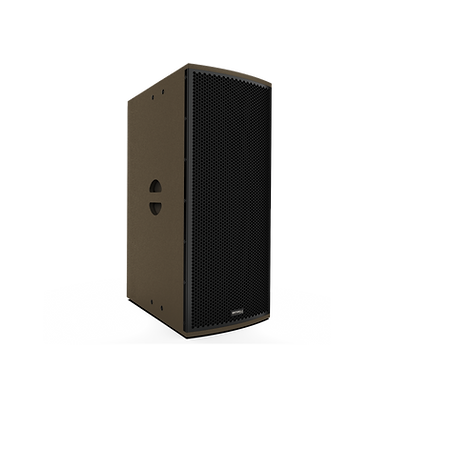

Powered Dual 10" Point Source Speaker

TECHNICAL SPECIFICATIONS

ACOUSTICAL SPECIFICATIONS

• Freq. Response (-3 dB) : 54 Hz - 20 kHz
• Freq. Range (-10 dB) : 49Hz - 20 kHz
• H Dispersion : 90° (- 6 dB)
• V Dispersion : 30° array dependent
• Crossover : Digital FIR : 1 kHz
• Max Output : Cont. : 131dB, Peak : 137dB

SYSTEM SPECIFICATIONS

• Recommended Subwoofers : See Systems
Chart for compatible subwoofers
• Recommended System Control : Delta Audio
Controller (DAC) & Delta Array Predictor (DAP)

LF TRANSDUCER

• 1013 F - 10" Low Frequency Driver
• Two drivers connected in series
• 500W , 2000W Peak
• 3” Inside-out Aluminum Voice Coil
• Compliant & Controller spectre-spider
• Enhanced ventilation due to optimized heat paths

HF TRANSDUCER

• HF 1575-1.5” Exit High frequency compression driver
• 100W, 400W Peak
• 3” VC Ferrite Magnet
• Precise waveguide maintaining horizontal dispersion upto 18 kHz

AMPLIFIER & DSP
SPECIFICATIONS

• 3000W Class-D Amplifier
• Dual Stage Power Factor Correction
• Exceptional Amplifier Efficiency
• Thermal, short-circuit and overload protections
• 64 bit/96kHz processor, Digital FIR filters
• 32 bit/96kHz AD/DA converters
• Dual Ethercon Connectors to connect with Delta Audio Controller
• 16A Neutrik Truecon Power In/Out

AESTHETIC SPECIFICATIONS

• British Acoustics Signature Umber Brown Tone
• Non Reflective, Matte Black Grills
• Available in a RAL code of your choice (24 nos, minimum)

OPERATING PARAMETERS

• Operating positions: Flowing or Ground stacked with the correct Array Frame or Accessory
• Maximum permitted ambient temperature (Ta max) 55° C (124° F)
• Minimum permitted ambient temperature (Ta min): -2° C (28.4° F)

IP SPECIFICATIONS

• IP 43 - Standard protection against dust & splashes

HOUSING

• Marine Birchply Enclosure
• Granular Scratch Free Polyurea Paint
• Perforated Black, Pressed Steel Grills
• Integrated Handles on Either Side
• M10 Flying Inserts
• Half-Octagon Rigging Block to fly multiple
units
• Integrated Handles for handling

OPTIONAL ACCESSORIES

• See system chart for the System Accessories

SIZE

• Product: 292 x 648 x 483 mm (H x W x D)
• Product: 11.5 x 25.5 x 19 inch (H x W x D)
• Packed individually

WEIGHT

• Net : 32 Kgs
• Net : 70.56 Lbs

SHIPPING INFORMATION

• Carton SIze
367 x 723 x 558 mm (H x W x D)
14.4 x 28.4 x 21.9 inch (H x W x D)
• Gross Weight : 37 Kgs / 81.58 Lbs
• Packed : individually
