Precision Power PC1000.5D 1000W RMS 5-Channel Car Amplifier - Class A/B/D PowerClass Vertical Series with Bass Remote Control for Enhanced Car Audio System | Perfect for Trucks, SUVs and Custom Car Stereo Upgrades

Features:

• Class AB / D 2 ohms Stable 5-Channel Amplifier
• RMS Power Rating:
• 4 ohms: 60 watts x 4 channel + 300 watts x 1 channel
• 2 ohms: 100 watts x 4 channel + 600 watts x 1 channel
• Bridged: 200 watts x 2 channel @ 4 ohms + 600 watts x 1 channel @ 2 ohms
• Total power output: 1000 watts
• N-Channel MOSFET Transistors from Sanken® of Japan
• Sequenced delays eliminate power-up/power-down pops
• Output stage bias individually sequenced
• Close tolerance signal path components <1% wima® of Germany

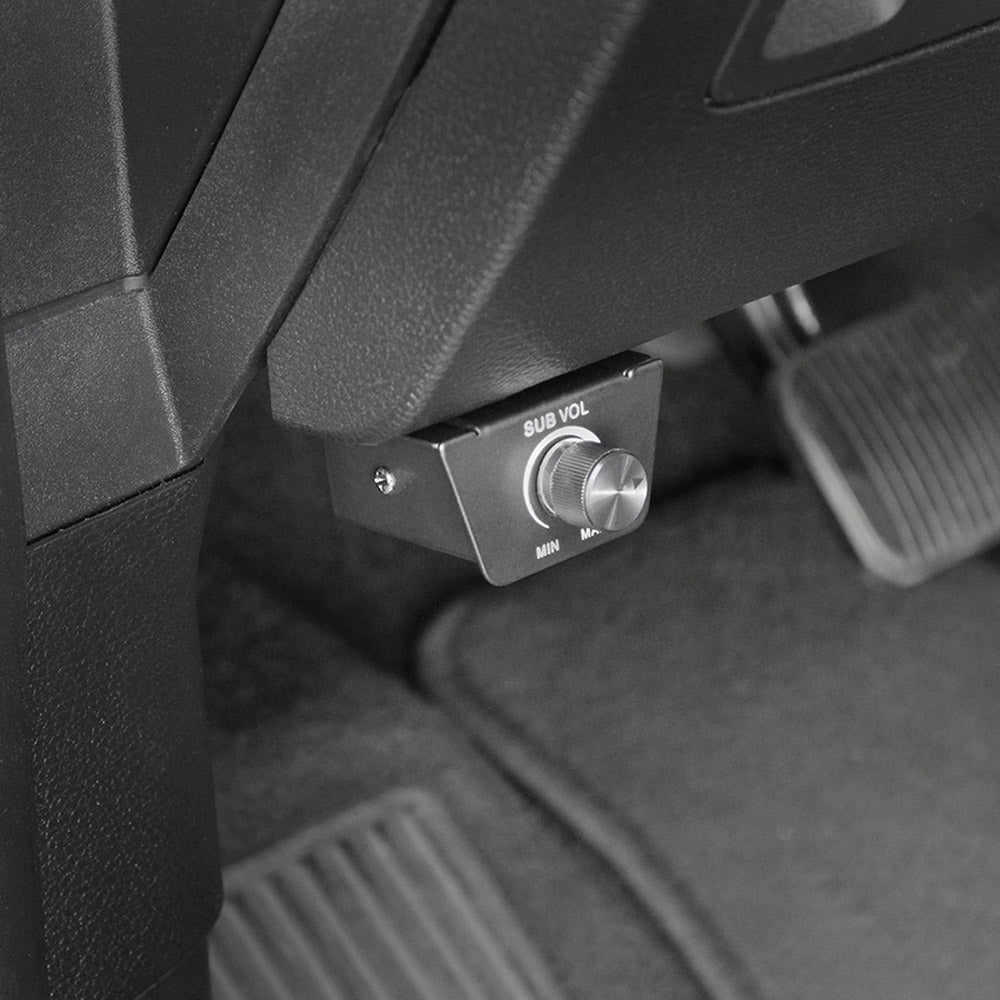

• Wired remote bass level control included
• Full signal path low noise/distortion circuitry topology
• Extra low current drive stage increases efficiency & sound clarity
• Stout 2 oz. Copper traces
• Differential RCA inputs isolate 12v/audio to ground
• Individually regulated preamp/crossover power supply ensures signal purity
• LED Power/Protect Light
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Total Harmonic Distortion (THD): 0.05%
• Signal to Noise Ratio: 90 dB
• Variable high-pass filter: 50 - 250 Hz
• Variable low-pass filter: 40 - 180 Hz
• Variable Bass Boost: 0 - 18 dB
• Fuse Rating: 80A
• 4 AWG gauge power and ground wiring is recommended for installation.
• Dimensions: 3.25" W x 17.75" L x 8" H

Specifications:

Power Specifications - Full Range Channels:

• RMS Power @ 4 ohms: 60 watts x 4 channel
• RMS Power @ 2 ohms: 100 watts x 4 channel
• Bridged RMS Power: 200 watts x 2 channel

Power Specifications - Subwoofer Channel:

• RMS Power @ 4 ohms: 300 watts x 1 channel
• RMS Power @ 2 ohms: 600 watts x 1 channel

Amplifier Specifications:

• Series: Power Class Series
• Marine Certified: No
• Amplifier Class: AB / D
• Number of Channels: 5-Channel
• Total RMS Power Output: 1000 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: 4 ohms
• Frequency Response: 17 - 36000 Hz
• THD at Rated RMS Power: 0.05%
• Speaker Level Inputs: No
• Preamp Outputs: No
• Built-in Crossover: Low-Pass (LP), High-Pass (HP), Subsonic
• High-Pass Crossover Frequency: 50 - 250 Hz
• Low-Pass Crossover Frequency: 40 - 180 Hz
• Subsonic Filter: 17 - 50 Hz
• Signal-to-Noise Ratio: 90 dB
• Bass Boost: 0 - 18 dB
• Remote bass/level controller: Yes
• Fan Cooled: No
• Fuse Rating: 80A x 1
• Total Fuse Rating: 80A
• Strappable: No
• CEA-2031 Compliant: No
• Amp Bluetooth Connectivity: No
• Hi-Res Certified: No
• High-Level Input Sensitivity: 200mV - 6 volts
