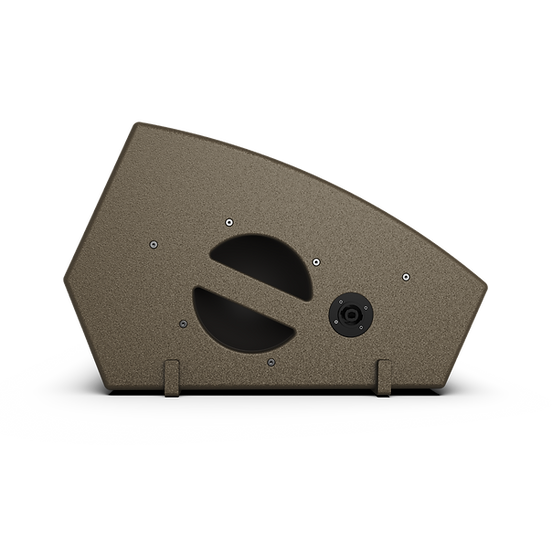

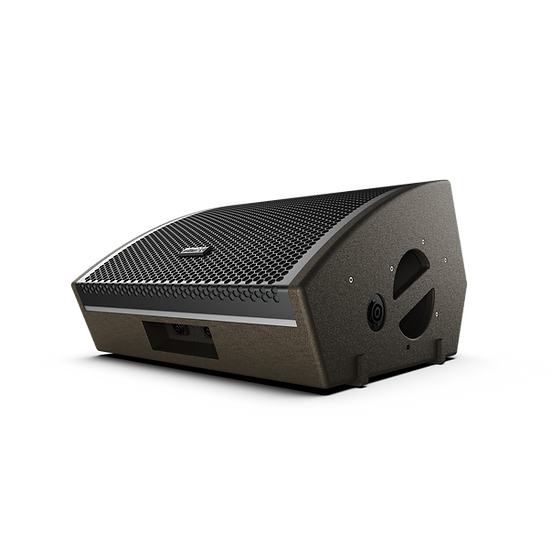

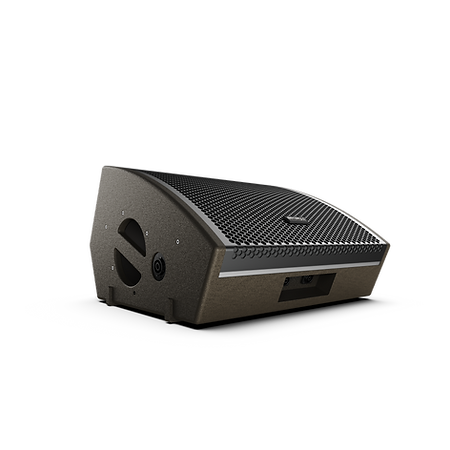

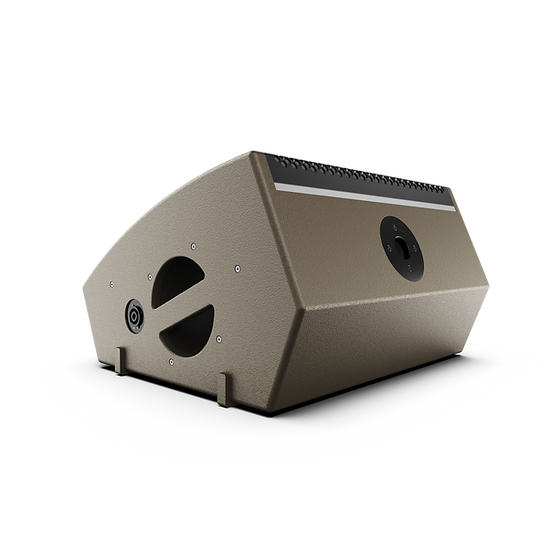

Delta 960X

15" Co-Axial Multipurpose Monitor

TECHNICAL SPECIFICATIONS

ACOUSTICAL SPECIFICATIONS

• Freq. Response (-3 dB) : 68 Hz - 18 kHz
• Freq. Range (-10 dB) : 50 Hz - 18 kHz
• Rated Power : 600W AES, 2400W Peak
• H Dispersion : 100° (- 6 dB)
• V Dispersion : 60° (- 6 dB)
• Nominal Impedance : 8 Ω
• Crossover : 1.2 kHz Passive
• Max Output : Cont. - 128dB, Peak - 133dB
• 5 x Speak-On Sockets, Input & Thru

SYSTEM SPECIFICATIONS

• Recommended System Control : Delta 48 ,
Delta 98 FIR , PW 6
• Recommended Amplifiers : See Amplifier load calculation chart

CO-AXIAL TRANSDUCER

• ARD-CX-15-76- 15" Coaxial Driver with 1.4"
Compression Driver
• 500W AES, 2000W Peak
• 3" Voice Coil - Ferrite Magnet
• AuraTense Suspension for an optimised
compliant restoring force
• Engineered Demodulation Circuit to
minimize magnetic flux and lower distortion
• HF : 3" Voice Coil - Ferrite
• 100W AES, 400W Peak
• Mounted behind the assymetrical aura max
waveguide that ensures minimal resonance
across a precise coverage pattern
• Co-axial configuration allows for maximum
coherence by reducing phase imbalances

HOUSING

• Birch wood Enclosure
• Granular Scratch Free Polyurea Paint
• Perforated Stainless Steel Grill backed by
acoustically transparent foam over a
stainless steel mesh
• M10 Flying Inserts
• Rubber feet for use as floor monitor
• Standard 35mm Pole Socket
• Easy Transport Wood Recessed Handles with
ABS Gripmats

AESTHETIC SPECIFICATIONS

• British Acoustics Signature Umber Brown Tone
• Non Reflective, Matte Black Grills
• Available in a RAL code of your choice (24 nos, minimum)

OPERATING PARAMETERS

• Operating positions: To be used as a stage
monitor, or vertically deployed over a sub, or
on pole mount as an FOH Speaker
• Maximum permitted ambient temperature
(Ta max) 55° C (124° F)
• Minimum permitted ambient temperature
(Ta min): -9° C (15.8° F)

IP SPECIFICATIONS

• IP 43 - Standard protection against dust &
splashes

OPTIONAL ACCESSORIES

• See system chart for the System Accessories

SIZE

• Product : 367 x 616 x 562 mm (H x W x D)
• Product : 14.4 x 24.2 x 22.1 inch (H x W x D)
• Packed individually

WEIGHT

• Net : 26 Kgs
• Net : 57.3 Lbs

SHIPPING INFORMATION

• Carton Size
442 x 691 x 637 mm (H x W x D)
17.4 x 27.2 x 25.07 inch (H x W x D)
• Gross Weight : 27.3 Kgs / 60.18 Lbs
• Packed : Individuall
