• 4 Dante Outputs (optional) • 4 Link Outputs • 4 Power Outputs

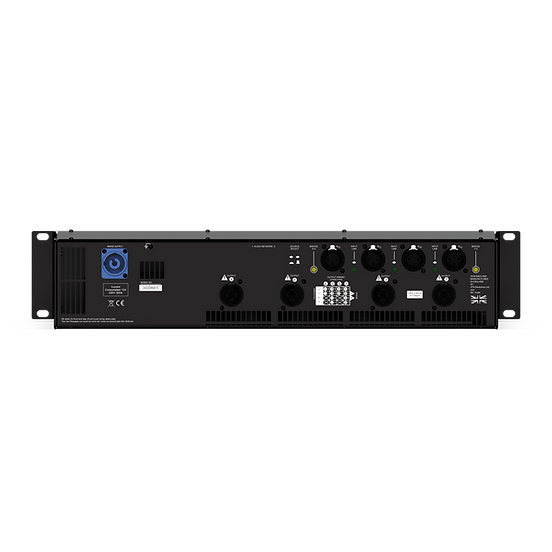

CONNECTORS
• XLR Connectors for Signal Input and Link Outputs • Speak-on Connectors for Channel Outputs • 2 x Ethernet Ports (Dante)
SYSTEM SPECIFICATIONS
• Input CMRR > 60 dB • Freq. resp.: 3Hz-30kHz ±3dB • THD : better than 0.18% (1 kHz) • THD : better than 0.2% (FR) • Nominal system gain: 32dB • Input Impedance — 20kΩ • >400 Damping Factor, 1kHz, 8 • Signal Limiters Present • Protection Against Short Circuit / Temperature / DC Outputs • Mains In-rush Control present

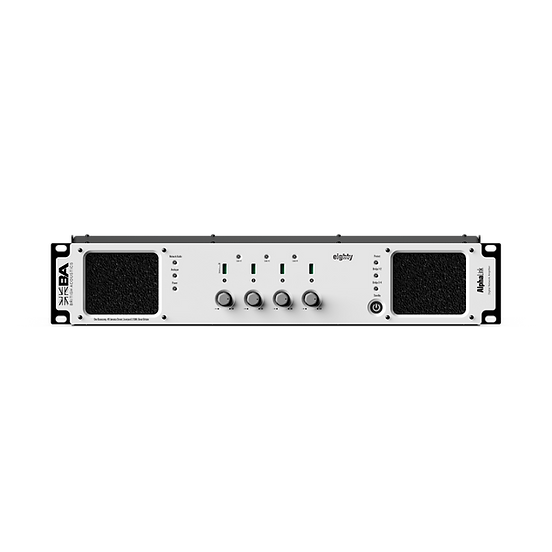

CONTROLS & MONITORING
• LED Strip for Output Metering • LED Indicators for Network & AES Audio, Remote Connection and Output Bridge Indicators • Rotary Knobs for Channel Volume
POWER CONSUMPTION
• 5A Power Consumption, Nominal @ 240V, 4 Ohms • 10.4A Power Consumption, Nominal @ 120V, 4 Ohms • See Power Consumption & Thermal Emission Chart for a detailed specification
OPERATING PARAMETERS
• Operating positions : To be used in a rack-mount case with no front to back airflow restriction • Maximum permitted ambient temperature (Ta max) 45° C (113° F) • Minimum permitted ambient temperature (Ta min): 0° C (32° F) • 32 dB Fan
AESTHETIC SPECIFICATIONS
• Black Aluminum Chassis • Matte Star White Front Panel
SIZE
• Product : 88 x 482 x 458 mm (H x W x D) • Product : 3.4 x 19 x 18 inch (H x W x D) • Packed individually
WEIGHT
• Net : 11 Kgs • Net : 24.2 Lbs
SHIPPING INFORMATION
• Carton Size 163 x 556 x 533 mm (H x W x D) 6 x 22 x 21 inch (H x W x D) • Gross Weight : 13 Kgs / 28.7 Lbs • Packed : Individually
