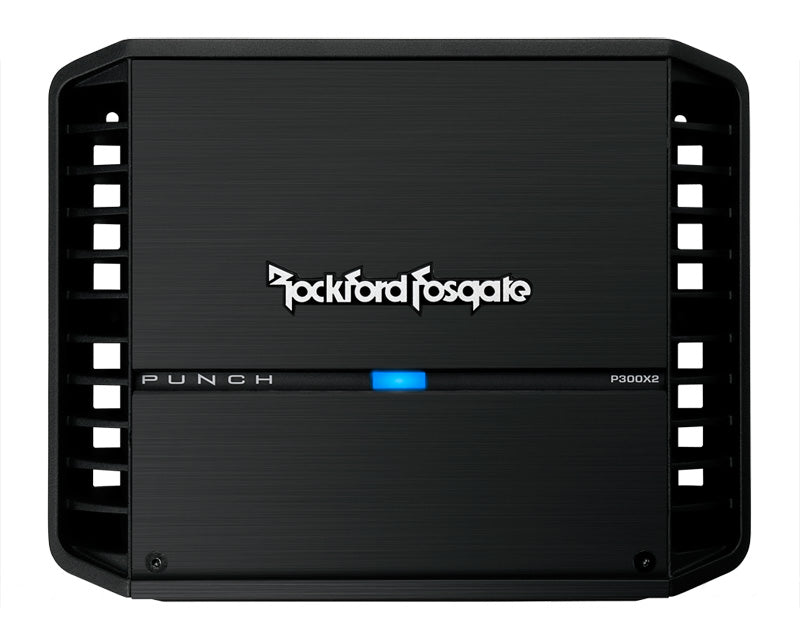

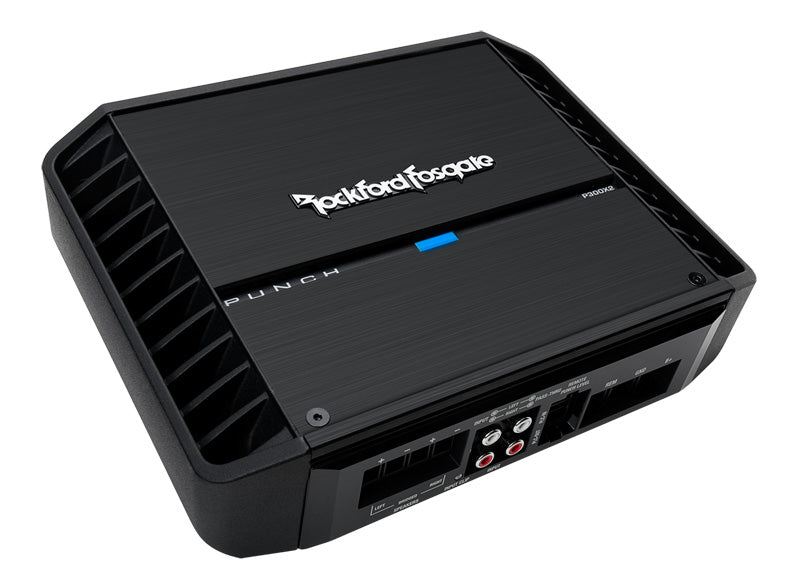

Rockford Fosgate P300X2 500W 2-Channel Amplifier - High Power Car Audio Amp for Cars, Trucks & SUVs | Perfect for Upgrading Sound System, Bass Boost & Clear Audio Performance

Features:

• Punch Series 2-Channel Class AB Car Amplifier
• RMS Power Rating:
  • 4 ohms: 100 watts x 2 chan.
  • 2 ohms: 150 watts x 2 chan.Car Amplifier
  • Bridged, 4 ohms: 300 watts x 1 chan.
• MOSFET power supply
• Remote bass level input (remote level control sold separately)
• LED power, thermal, and protect indicators
• Tuned Bass EQ (0-18 dB bass boost at 45 Hz or 0-14 dB bass boost at 12 kHz depending on crossover selection)
• On-board differential inputs eliminates noise picked up by the signal cable
• 2 or Mono channel operation
• Integrated Trans•ana technology simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality
• RCA Pass-thru outputs
• MESHA3 reduces MOSFET temperatures, lowers distortion, increases durability, and prolongs the output device life span
• DSM (Discrete Surface Mounted Components) utilize 1% tight-tolerances improving efficiency of the circuit and lowers operating temperature and potential for noise - similar to circuit boards designed by aerospace manufacturers
• Built in NOMAD is a Inchreal time Inch analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances
• Cast aluminum convection heatsink with DTM (Dynamic Thermal Management) evenly distributes excess heat across entire amplifier heatsink to efficiently keep the amplifier temperatures low
• Nickel-plated RCA level inputs
• Nickel-plated captive C-clamp terminals
• Variable high-pass filter (50-250 Hz, Butterworth, 12 dB/octave)
• Variable low-pass filter (50-250 Hz, Butterworth, 12 dB/octave)
• CEA-2006 compliant amplifier
• Frequency response: 20-20000 Hz
• Dimensions: 9-7/8 Inch L x 7-3/4 Inch W x 2-3/8 Inch H
• 8-gauge power and ground leads recommended.

Specifications:

• Amplifier Class: AB
• Number of Channels: 2
• Total RMS Power Output: 300 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: 4 ohms
• Speaker Level Inputs: Yes
• Preamp Outputs: 1 pair
• Built-in Crossover: LP/HP
• High-Pass Crossover Frequency: 50 - 250 Hz
• Low-Pass Crossover Frequency: 50 - 250 Hz
• Signal-to-Noise Ratio: 105 dB
• Bass Boost: 0 - 18 dB
• Bass/Gain Remote: Optional
• Fan Cooled: No
• CEA-2006 Compliant: Yes
• Strappable: No
