Precision Power PC1000.1D 1000W RMS Class D Monoblock Car Amplifier with Bass Knob - High Power Audio for Car Stereo Systems and Subwoofers

Features:

• Power Class Series Class D 1 ohms Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 300 watts x 1 channel
• 2 ohms: 600 watts x 1 channel
• 1 ohm: 1000 watts x 1 channel
• Total RMS power output: 1000 watts
• N-Channel MOSFET Transistors from Sanken® of Japan
• LED Power/Protect Light

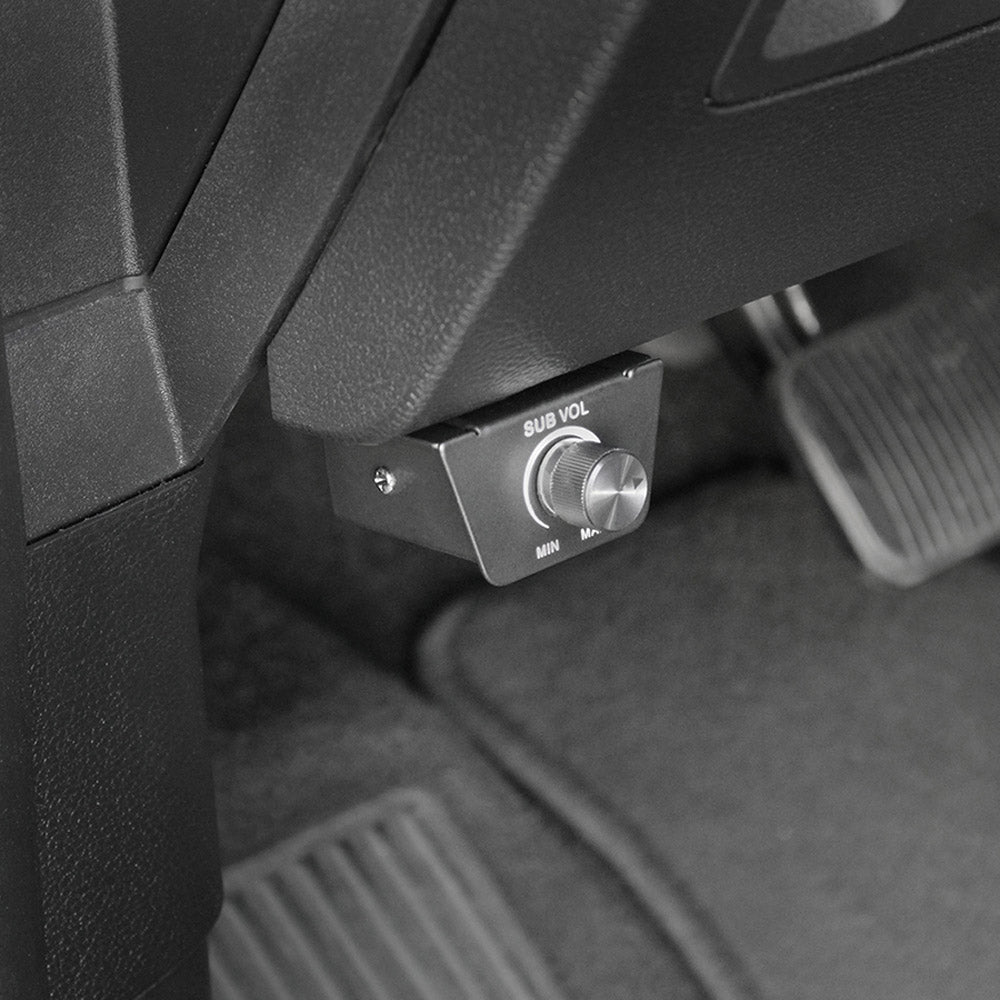

• Wired remote bass level control included
• Full signal path low noise/distortion circuitry topology

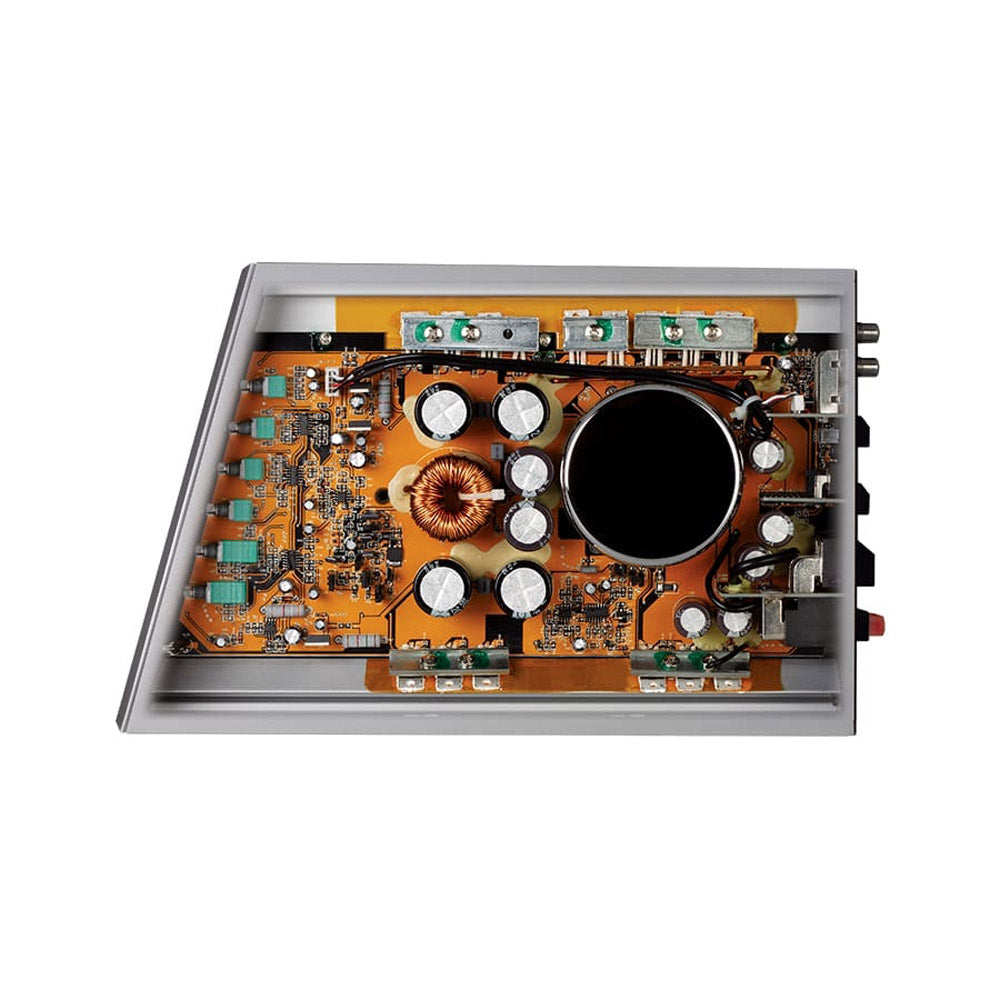

• Stout 2 oz. Copper traces
• Differential RCA inputs isolate 12v/audio to ground
• Individually regulated preamp/crossover power supply ensures signal purity
• Soft start turn-on
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Frequency Response: 30 - 100 Hz
• Total Harmonic Distortion (THD): 1%
• Signal to Noise Ratio: 90 dB
• Variable low-pass filter: 32 - 300 Hz
• Subsonic filter: 17 - 50 Hz
• Variable Bass Boost: 0 - 18 dB
• Fuse Rating: 100A
• 4 AWG gauge power and ground wiring is recommended for installation.
• Dimensions: 3.25" W x 12.25" L x 8" H

Specifications:

Power Specifications - Subwoofer Channels:

• RMS Power @ 4 ohms: 300 watts x 1 channel
• RMS Power @ 2 ohms: 600 watts x 1 channel
• Bridged RMS Power: 1000 watts x 1 channel

Amplifier Specifications:

• Series: Power Class Series
• Marine Certified: No
• Amplifier Class: D
• Number of Channels: 1 - Mono
• Total RMS Power Output: 1000 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 1 ohms
• Minimum Impedance Bridged: Not Bridged
• Frequency Response: 30 - 100 Hz
• THD at Rated RMS Power: 1%
• Speaker Level Inputs: No
• Preamp Outputs: 1 Pair
• Built-in Crossover: Low-Pass (LP), Subsonic
• Low-Pass Crossover Frequency: 32 - 300 Hz
• Subsonic Filter: 17 - 50 Hz
• Signal-to-Noise Ratio: 90 dB
• Bass Boost: 0 - 18 dB
• Remote bass/level controller: Yes
• Fan Cooled: No
• Fuse Rating: 100A x 1
• Total Fuse Rating: 100A
• Strappable: No
• CEA-2031 Compliant: No
• Amp Bluetooth Connectivity: No
• Hi-Res Certified: No
• Low-Level Input Sensitivity: 200mV - 8 volts
